Description

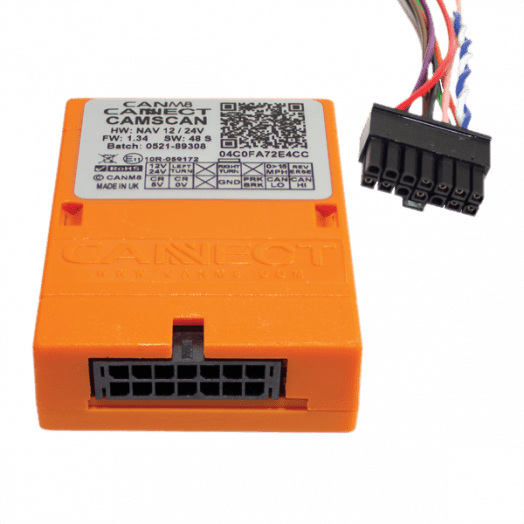

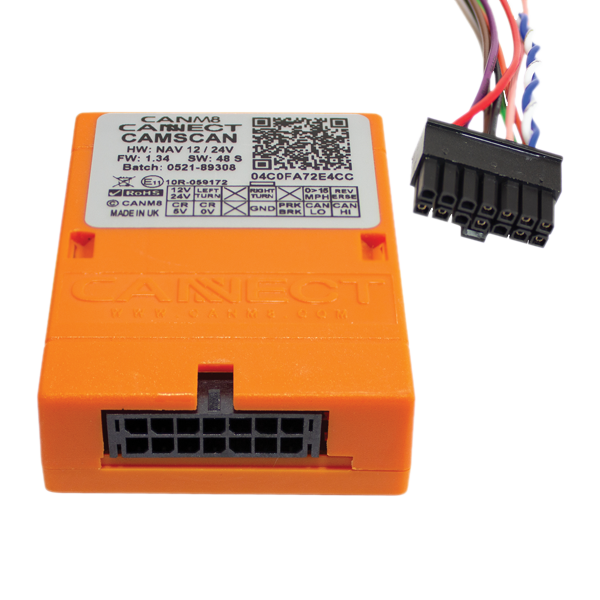

This interface is ideal for use when installing side scan systems and external safety equipment to vehicles which feature CAN Bus wiring. It can drastically reduce installation time and is very common with customers who have inner-city vehicles where external safety equipment is paramount.
Speed – 12v/24v (1A max) when the vehicle speed is below the 15-mph speed threshold
Reverse – 12v/24v (1A max) when reverse gear is selected
Left Indicator – Continuous 12v/24v (1A max) when the left indicator is active, and the vehicle speed is below the speed threshold
Right Indicator – Continuous 12v/24v (1A max) when the right indicator is active, and the vehicle speed is below the speed threshold
Park Brake – Continuous 0v (1A max) when the park brake is applied
• 12 – 24 volt
• Current draw at 12v 1.0 Amp
• ECE R10, E and RoHS Approved
• Reverse polarity protection
• Dimensions H.16mm W.45mm L.65mm
• Pack Size 1
Available on request due to firmware update.
Explore the full Guardian Automotive range for more tools and accessories.
