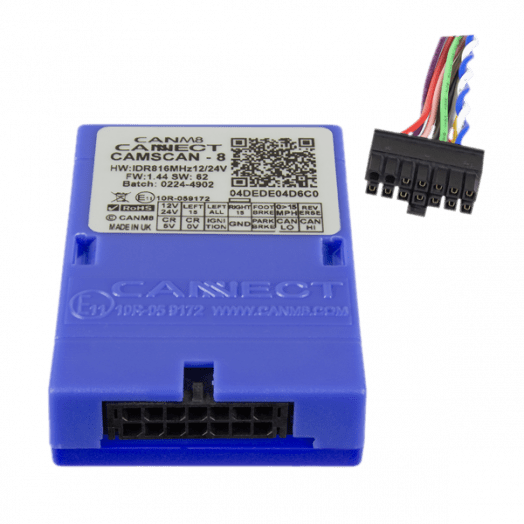

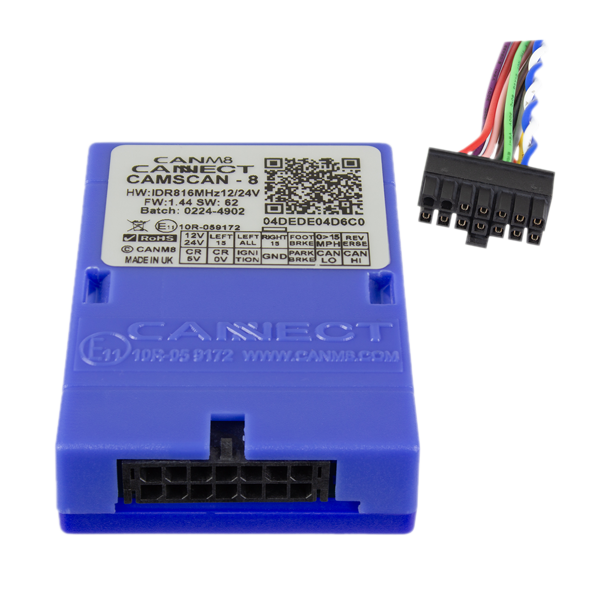

Can Bus Interface

Description

This interface is ideal for use when installing side scan systems and external safety equipment to vehicles which feature CAN Bus wiring. It can drastically reduce installation time and is very common with customers who have inner-city vehicles where external safety equipment is paramount.

Speed – 12v/24v (1A max) when the vehicle speed is below the 15 mph speed threshold

Reverse – 12v/24v (1A max) when reverse gear is selected

Left Indicator – Continuous 12v/24v (1A max) when the left indicator is active, and the vehicle speed is below the speed threshold

Right Indicator – Continuous 12v/24v (1A max) when the right indicator is active, and the vehicle speed is below the speed threshold

Ignition – Continuous 12v/24v (1A max) when the ignition is turned on

Service Brake – Continuous 12v/24v (1A max) when the service brake (foot brake) is applied

Park Brake – Continuous 0v (150mA max) when the park brake is applied

• 12 – 24 volt
• Current draw at 12v 1.0 Amp
• ECE R10, E and RoHS Approved
• Reverse polarity protection
• Dimensions H.16mm W.45mm L.65mm
• Pack Size 1

Available on request due to firmware update.
