Guardian Automotive Side Detection System – for side detection systems

Description

12 – 24 volt Side Detection System which uses Ultrasonic Technology, is designed to prevent accidents with cyclists or pedestrians. At traffic lights, left turns or slow moving traffic, cyclists will often attempt to pass on the inside of a vehicle and similary pedestrians will stand too close to the road not realising that a large vehicle turning left may cut across the curb. The SDS1 pedestrian / cyclist detection system is an ultrasonic sensor system specifically designed to give a warning not only for the driver, but also to make cyclists and pedestrians aware of a turning vehicle.

• 12 – 24 volt
• Sensors rated IP68
• E mark approved
• Ultra sonic technology
• Interior warning display with buzzer
• Intelligent cyclist / pedestrian anti collision system
• Intelligent external audible warning alarm
• System activated via indicator trigger and speed sensor signal

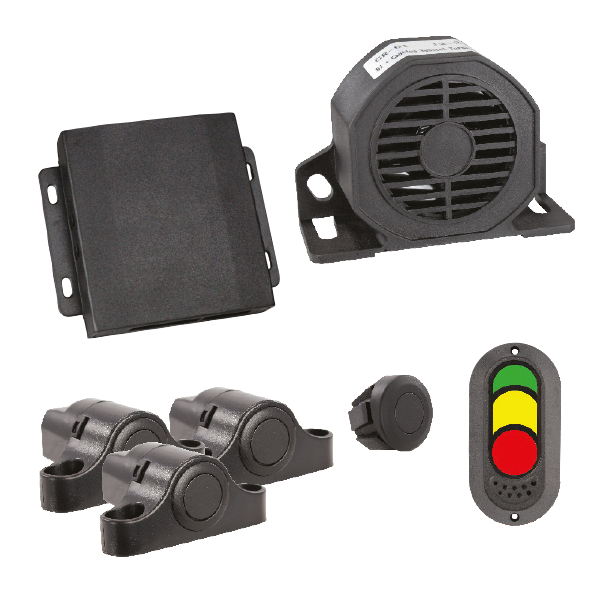

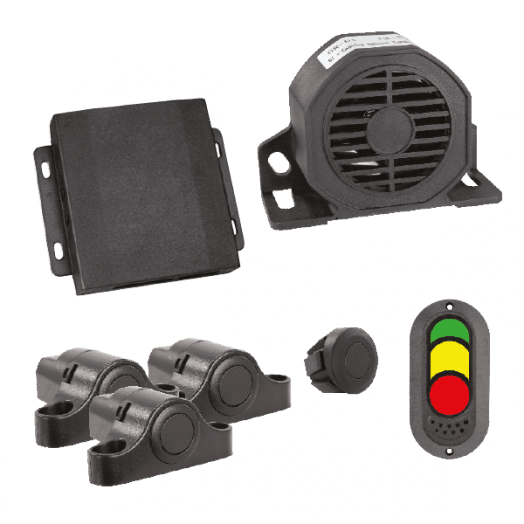

• 1 x angled sensor (SEN3) and 3 x under mount sensors (SEN1). (Other configurations are available on request including straight sensor SEN2)
• Pack Size 1

To give best coverage to detect pedestrians and cyclists, the first sensor is mounted into the nearside wheel arch section at a height no closer than 450mm from the ground. The second sensor is mounted on the nearside forward corner of the body. The forth sensor is mounted above or just in front of the rear wheels and the third sensor is mounted between the second and forth sensor.
