Description

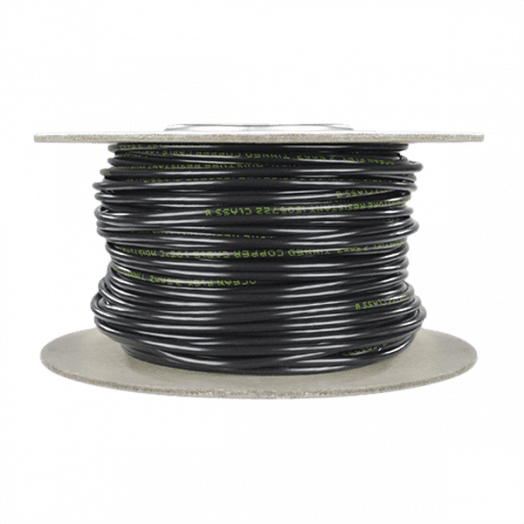

High temperature low voltage thin wall wiring cables suitable for use in automotive, marine and other harsh environments. The tinned copper conductors make this cable more resistant to corrosion.
Specifications
Manufactured in accordance with ISO 6722-1:2011 (class B).
Suitable for 12v and 24v systems (maximum 60v).
Tinned copper Conductors, PVC insulated.
Suitable for use at temperatures from – 40°C to 105 °C with excursions up to 120°C.
Good resistance to petrol, diesel, lubricating oils, diluted acid and moisture.
Hard grade PVC insulation saves weight and offers good resistance to abrasion and cut through.
Cables are printed with the specification on the insulation.
Manufactured in the UK.
Please contact our sales office for information about other products in this range.
Conductor
Cross Section
Maximum Overall Dia
Maximum Loading (watts)
Resistance per metre at 20°C
Reel Size
35/0.30
2.5 (mm²)
3.0 (mm)
348 (12v) / 696 (24v)
0.00782 (Ohms)
50m
Explore the full Guardian Automotive range for more tools and accessories.
